Product Description
Spinalator Rollers
These Replacement Rollers are for Spinalator Table with Electric Roller Height Elevation ONLY!
New Rollers are Black,Higher Density Foam!
The Spinalator Roller Kit Includes
High Density Rollers - Qty 3
Plastic Inserts - Qty 3
You should be able to re-use your old bolts and nuts. If not, please choose them from the drop down menu.
Spinalator Rollers comes with Set of three High Density Rollers, Steel bearings, bolts, & lock washers. These replacement Spinalator rollers will fit all Spinalator's with electric elevation.

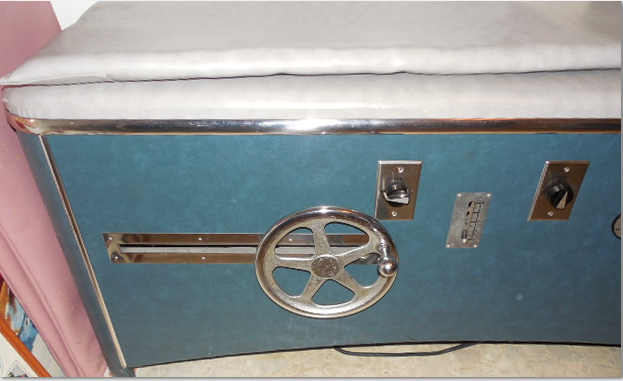

If you have an old style table with the manual wheel elevation (shown below) and roller mounting system, you will need to order the Old Style Roller kit .

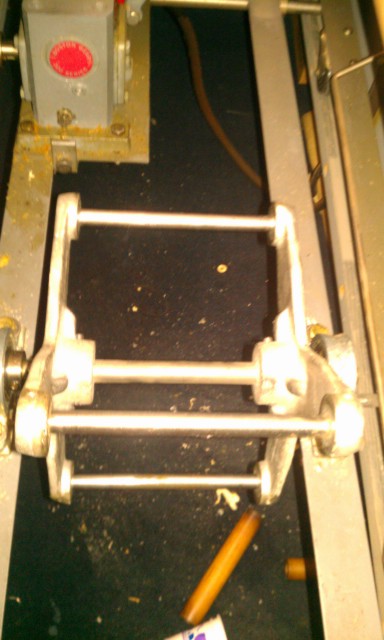

The picture below shows an oldest style Spinalator with Manual Roller elevation. It uses a very OLD 3 arm, mounting system. You MUST purchase the old style UPDATE KIT!!! If you are unsure, please call 256 245 8390.
Replacement Spinalator Table Rollers Instructions with Electric Elevation
-
Remove top from spinalator by unclamping end brackets.
-
Make sure hands are clear of any moving parts and turn table timer on. Elevate Roller to top height
-
Turn Roller rotation switch OFF, with one roller centered to the top of the triangle assembly.
-
UNPLUG TABLE - Some spinalators have a auto retract to lower rollers. Failure to UNPLUG table will let the roller retract automatically. This could cause bodily injury or tear up your new spinalator rollers! This will also keep you from getting shocked if you happen to touch a exposed wire.
-
1st Roller-Remove Bolt from Roller and remove old spinalator Roller. Install new Spinalator roller, New style roller will have a easy one piece bearing and dual bolt for ends. Make sure and use provided Lock Washer!!!
-
Ensure Hands, tools, and anything else is clear of rollers then plug up table. Turn spinalator rotation switch on and cycle roller to next top height and shut off rotation switch again.
-
UNPLUG TABLE - Some spinalators have a auto retract to lower rollers. Failure to UNPLUG table will let the roller retract automatically. This could cause bodily injury or tear up your new spinalator rollers! This will also keep you from getting shocked if you happen to touch a exposed wire.
-
2nd Roller-Remove Bolt from Roller and remove old spinalator Roller. Install new Spinalator roller, New style roller will have a easy one piece bearing and dual bolt for ends. Make sure and use provided Lock Washer!!!
-
Ensure Hands, tools, and anything else is clear of rollers then plug up table. Turn spinalator rotation switch on and cycle roller to next top height and shut off rotation switch again.
-
Final Roller - Remove Bolt from Roller and remove old spinalator Roller. Install new Spinalator roller, New style roller will have a easy one piece bearing and dual bolt for ends. Make sure and use provided Lock Washer!!!
-
Ensure Hands, tools, and anything else is clear of rollers then plug up table. Turn spinalator rotation switch on and cycle rollers for final test.
-
Install Top, make sure Top opening is facing the right direction on table. Fasten both End latch's.
Check Chain Tension on Spinalator Roller rotation motor chain while top is removed. The Spinalator Roller tension should be like a bicycle chain; tight but not over tightened, to stretch the chain! Lube Chain with a Teflon lube. WD 40 will stop a squeak but is water based and will evaporate quickly! If you have movement in the roller after tightening chain, check spinalator sprocket for a broken weld....
replacement Spinalator Roller table, Replacement Spinalator Rollers for sale, Spinalator Roller replacement, Spinalator Roller Table Chiropractic, Spinalator table roller for sale, Spinalator roller table part, spinalator table roller part, Spinalator Rollers, Replacement Spinalator Rollers, Spinalator ist Roller, Replacement Spinalator table Roller, spinalator table roller, spinalator roller table part, spinalator table rollers
Warranty Information
These New Spinalator IST Table Rollers are 100% guaranteed to be free of defects for one year from date of purchase.Product Videos
